Fiber Optical PCM MUX 16voice pluse 4E1 interface 4Ethernet 4RS232 telephone multiplexer

Place of Origin : zhejiang

Brand Name : Fibreasy

Model Number : FC-PCM16F

Certification : ISO2008

Price : usd520/pair

Packaging Details : Simple packaging Size: 522X263X82mm(WXDXH)

Delivery Time : 5~15days

Payment Terms : L/C,T/T, Western Union, MoneyGram

Supply Ability : 1000Pieces per Week

MOQ : 1 pair

Voice : 16 channel telephone POTS , EM 2 wire , EM 4 wire

e1 : 4 ports E1 , 120ohm RJ45 , 75ohm BNC

Ethernet : 100Mbps , RJ45

power supply : AC+DC power supply

management : console

Contact Now



16 channel telephone + 4E1 + 4FE over fiber optical multiplexer


Product Overview

This device provides 16Channel telephone 1-4Channel E1 interface, 4Channel10M/100MEthernet interface (Line Speed 100M) and 4 expansion interface. 4Channel Ethernet interface is switch interface, can support VLAN. 4 expansion interface can be used as the transmission channel ofRS232/RS485/RS422asynchronous data, voice signal, 2/4 lineE&M audio signal, switch signal, Ethernet signal (Bandwidth 2M). It is very flexible.

Features

  • Based on self -copyright IC
  • E1 interface comply with G.703, adopts digital clock recovery and smooth phase-lock technology
  • Voice port supports FXO and FXS port, EM2/4 audio interface, FXO port docking with program-controlled switchboard, FXS port connected to the user's telephone;
  • Voice FXO/FXS access, supports caller ID feature and reverse polarity billing functions
  • Support various sites mutual number allocation function
  • Provide 4 expansion interface, you can extend 1~4Channel asynchronous data, such as RS232/RS485/RS422/Manchester code; 1~4Channel voice, 1~8Channel switch , or two/four line audio and so on
  • Ethernet interface supports 10M/100M, half/full duplex auto- adaptable, support VLAN
  • 4Channel Ethernet interface is switch interface, support VLAN, can set to 4 channel logical isolation
  • Ethernet interface can support AUTO-MDIX (crossed line and straightly connected line self-adaptable )
  • The transmission distance is up to 2-120Km without interruption
  • AC 220V, DC-48V, DC24V can be optional

Technical parameters


Optical portMulti-mode50/125um,62.5/125um
Max transmission distance:5KM 62.5/125um single mode fiber,attenuation(3dbm/km)
Wave length:820nm
Transmitting power:-12dBm(Min)-9dB(Max)
Receiver sensitiveity:-28dBm(Min)
Link budget:16dBm
single-mode8/125um, 9/125um
Maximum transmission distance: 40Km
Transmission distance: 40KM@9/125um
Wave Length: 1310nm
Transmitting power: -9dBm (Min) ~-8dBm (Max)
Receiver sensitivity: -27dBm (Min)
Link budget: 18dBm
E1interface (10M/100M)Interface Standard:Comply with protocol G.703
Interface rate:n*64Kbps±50ppm;Interface Code: HDB3;
E1 Impedance: 75Ω (unbalance), 120Ω (balance);
Jitter tolerance: In accord with protocol G.742 and G.823
Allowed Attenuation: 0~6dBm
Ethernet interfaceInterface rate:10/100 Mbps,half/full duplex auto-negotiation
Interface standard:Compatible with Ieee802.3,IEEE802.1Q9(VLAN)
MAC Address Capability:4096
Connector:RJ45,support Auto-MDIX
FXS portRing voltage:75V
Ring frequency:25HZ
Two-line impedance:600 ohm(pick up)
Return loss:40dB
FXO Switch portRing voltage:35V
Ring frequency:17HZ-60HZ
Two-line impedance:600 ohm(pick up)
Return loss:40dB
EM 2/4 LineAD:odB
DA:-3.5dB
Two/Four-line impedance:600 ohm
Return loss:20dB
Powerpower supply:AC180V-260v;DC-48V;DC+24V
Powerconsumption:≤10W
Dimensionproduct size:Mini type 485X200X45mm(WXDXH)
Simple packaging Size: 522X263X82mm(WXDXH)
Piece Weight :2.4KG
Working environmentworking temperature:-10°C ~ 50°C
Working Humidity:5%~95 % (no condensation)
Storage temperature:-40°C ~ 80°C
Storage Humidity:5%~95 % (no condensation)

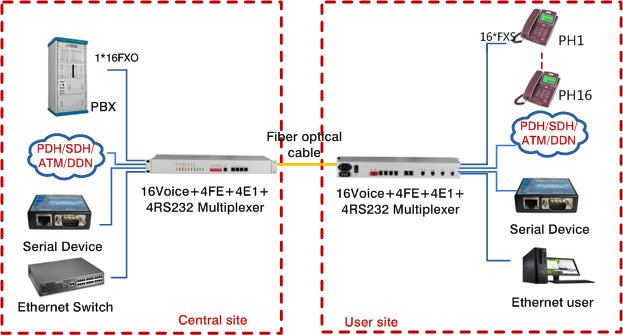

Networking Application

Ordinary or Hotline access ,point to point solution,both port can put in 16 channel telephones,1-4channel E1interface, 4channel 10M/100M Ethernet interface( Line Speed 100M) and 4 expansion interface.
Fiber Optical PCM MUX 16voice pluse 4E1 interface 4Ethernet 4RS232 telephone multiplexer

Fiber Optical PCM MUX 16voice pluse 4E1 interface 4Ethernet 4RS232 telephone multiplexer
Fiber Optical PCM MUX 16voice pluse 4E1 interface 4Ethernet 4RS232 telephone multiplexer
Fiber Optical PCM MUX 16voice pluse 4E1 interface 4Ethernet 4RS232 telephone multiplexer
