multi service 16e1 with 4*1000M gigabit ethenet dual fiber port single mode pdh fiber optic multiplexer

Product Categories
Fibre Easy Communication Service Limited
Contact Now

multi service 16e1 with 4*1000M gigabit ethenet dual fiber port single mode pdh fiber optic multiplexer

  • 1
  • 2

Place of Origin : China

Brand Name : Fibreasy

Model Number : FC-PDH16

Certification : ISO2008

Price : usd380/pair

Packaging Details : 522X198X82 (WXDXH)

Delivery Time : 5~10days

Payment Terms : L/C,T/T, Western Union, MoneyGram, MoneyGram

Supply Ability : 2000Pieces per Week

MOQ : 1 pair

E1 : 16 ports , 75ohm BNC , 120ohm RJ45

ethernet : 1000Mbps , RJ45

transmission distance : up to 120km

management : console ,SNMP

Contact Now

Fiber optical multiplexer 16E1 plus 4FE pdh mux





Product Overview



This device is the point-to-point optical transmission device developed on the basis of VLSI. The deviceprovides 1-16Channel E1 interface, 4Channel10M/100M/1000MEthernet interface (Line Rate 1000M) and 2 expansion interfaces. 4Channel Ethernet interface is switch interface, can support VLAN. 1 expansion interface can be used as the transmission channel ofRS232/RS485/RS422asynchronous data, voice signal, 2/4 lineE&M audio signal, switch signal, Ethernet signal (Bandwidth 2M).1Channel digital business phone can be optional.It is very flexible.It has alarm function. The work is reliable, stable, and low power consumption, high integration, small size.



Features

  • Based on self -copyright IC
  • The bandwidth is up to 1.5G, can save line sources
  • Ethernet interface rate is 10M/100M/1000M, half/full duplex auto- adaptable
  • 4Channel Ethernet interface is switch interface, support VLAN, can set to 4 channel logical isolation
  • E1 interface comply with G.703, adopts digital clock recovery and smooth phase-lock technology
  • 1Channel PCM digital business phone (optional)
  • Provide Console management interface
  • When optical lose signal, it can detect the remote device is power off or fiber is disconnected, and indicates alarm by LED
  • The local device can view the remote device working condition
  • Provide 2 expansion interface, you can extend 1~2Channel asynchronous data, such as RS232/RS485/RS422/Manchester code; 1~2Channel voice, 1~2Channel E1,1~4Channel switch , or Provide command the remote interface Loop Back, ease line maintenance
  • The transmission distance is up to 2-120Km without interruption
  • AC 220V, DC-48V, DC24V can be optional
  • DC-48V/DC24V power supply polarity detection function, Polarity-Free

Technical Parameters:



Optical port Multi-mode 50/125um,62.5/125um
Max transmission distance:5KM 62.5/125um single mode fiber,attenuation(3dbm/km)
Wave length:820nm
Transmitting power:-12dBm(Min)-9dB(Max)
Receiver sensitiveity:-28dBm(Min)
Link budget:16dBm
single-mode 8/125um, 9/125um
Maximum transmission distance: 40Km
Transmission distance: 40KM@9/125um
Wave Length: 1310nm
Transmitting power: -9dBm (Min) ~-8dBm (Max)
Receiver sensitivity: -27dBm (Min)
Link budget: 18dBm
E1interface Interface Standard:Comply with protocol G.703
Interface rate:n*64Kbps±50ppm;Interface Code: HDB3;
E1 Impedance: 75Ω (unbalance), 120Ω (balance);
Jitter tolerance: In accord with protocol G.742 and G.823
Allowed Attenuation: 0~6dBm
Gigabit Ethernet Interface Interface rate: 10/100 Mbps, half/full duplex auto-negotiation
Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
MAC Address Capability: 4096
Connector: RJ45, support Auto-MDIX
Power power supply:AC180V-260v;DC-48V;DC+24V
Powerconsumption:≤10W
Dimension product size:483X138X44mm( W XDXH)
Simple packaging :522X198X82 mm( WXDXH)
Piece Weight :3KG
Working environment working temperature:-10°C ~ 50°C
Working Humidity:5%~95 % (no condensation)
Storage temperature:-40°C ~ 80°C
Storage Humidity:5%~95 % (no condensation)

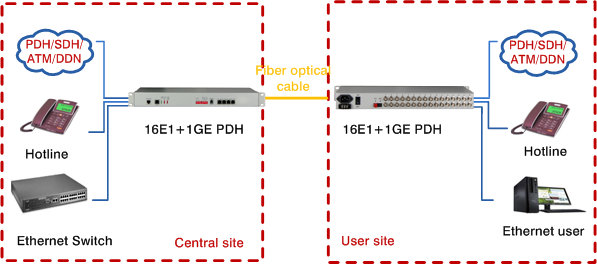

Networking Application:

Point to point solution, both port can access 1-16Channel E1 interface,4Channel10M/100M/1000M Ethernet interface,2 expansion interfaces.multi service 16e1 with 4*1000M gigabit ethenet dual fiber port single mode pdh fiber optic multiplexer

multi service 16e1 with 4*1000M gigabit ethenet dual fiber port single mode pdh fiber optic multiplexer

multi service 16e1 with 4*1000M gigabit ethenet dual fiber port single mode pdh fiber optic multiplexer
