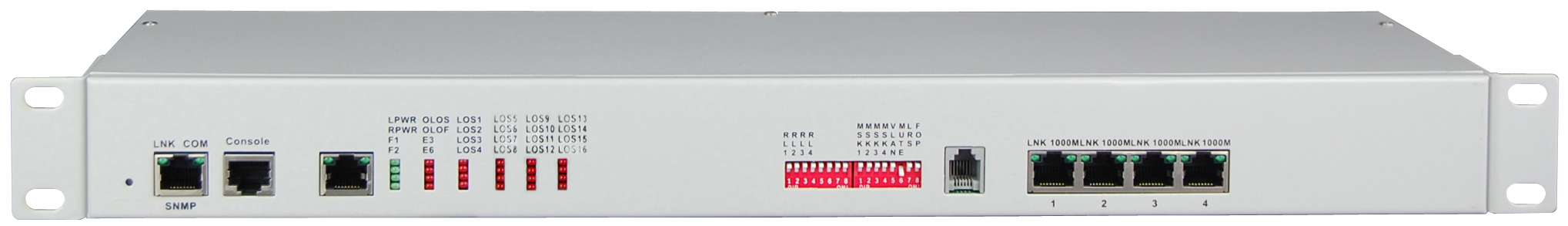

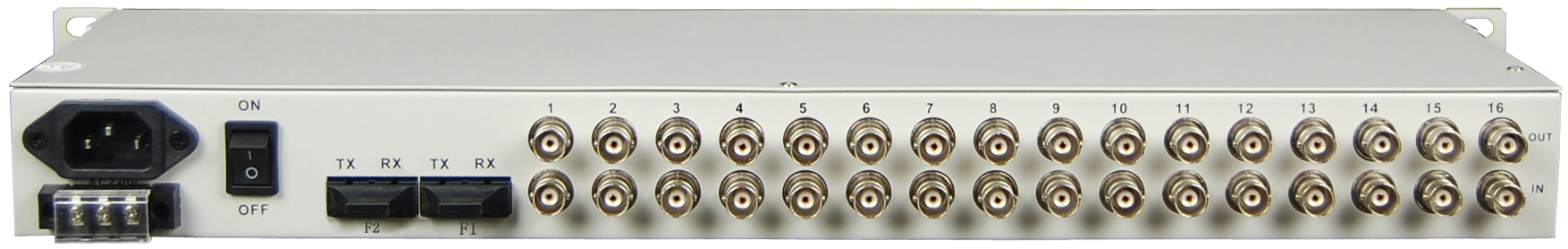

BNC E1 pmux of 16e1 and 2RS232/422/485 single mode Dual Fiber 20km Pdh Multiplexer

Name: BNC E1 pmux of 16e1 and 2RS232422485 single mode Dual Fiber 20km Pdh Multiplexer
Brand: fibreasy
Price: 120 USD

Buy cheap BNC E1 pmux of 16e1 and 2RS232/422/485 single mode Dual Fiber 20km Pdh Multiplexer product

Place of Origin : China（Mainland）

Brand Name : fibreasy

Model Number : FC-PDH16

Certification : ISO2008

Price : 120

Packaging Details : Standard export carton packing 522X198X82 mm (WXDXH)

Delivery Time : 5-15days

Payment Terms : L/C,T/T, Western Union, MoneyGram

Supply Ability : 2000Pieces peer week

MOQ : 1 pair

e1 : 16 port , BNC or rj45

data : rs232 rs422 rs485

fiber path : single mode , double core fiber , 20km

transmisson distance : up to 120km

power : AC+DC power

size : 19inch

hotline : FXS to FXS

management : console , SNMP

Contact Now

16e1+2RS232/422/485 Fiber Optical Dual Fiber 20km Pdh Multiplexer

Product Description

FC-PDH16 Has perfect alarm, high reliability and stabilization, low power consumption, high integration, easy installation and maintenance.

The device is popularly with telecommunication operator.It is suitable in business for communication operator, governmentand kinds of entities.

General information:1-16Channel E1 interface, master optical fiber interface and backup optical fiber interface, 1-4Channel10M/100MEthernet interface (Line Rate 100M) and 2 expansion interface. 4Channel Ethernet interface is switch interface, cansupport VLAN. 2 expansion interface can be used as the transmission channel ofRS232/RS485/RS422asynchronous data, voice signal, 2/4 lineE&M audio signal, switch signal, Ethernet signal (Bandwidth 2M). It is very flexible.It has alarm function. The work is reliable, stable, and low power consumption, high integration, small size.

Features

Modular wide dynamic optical detector
The device provides master optical fiber interface and backup optical fiber interface,Dual Optical Port backup function ensures that the work will never break
Ethernet interface rate is 10M/100M, half/full duplex auto- Negotiation
4Channel Ethernet interface is switch interface, support VLAN, can set to 4 channel logical isolation
E1 interface comply with G.703, adopts digital clock recovery and smooth phase-lock technology
1Channel PCM digital business phone (optional)
When optical lose signal, it can detect the remote device is power off or fiber is disconnected, andindicates alarm by LED
The local device can view the remote device working condition
Provide 2 expansion interface, you can extend 1~2Channel asynchronous data, such as RS232/RS485/RS422/Manchester code; 1~2Channel voice, 1~4Channel switch , or two/four line audio and so on
Provide command the remote interface Loop Back, ease line maintenance
The transmission distance is up to 2-120Km without interruption
AC 220V, DC-48V, DC24V can be optional
DC-48V/DC24V power supply polarity detection function, Polarity-F

Technical parameters

Fiber	Multi-mode Fiber	50/125um, 62.5/125um, Maximum transmission distance: 2KM@62.5/125um single mode fiber, attenuation (3dbm/km) Wave Length: 820nm Transmitting power: -12dBm (Min) ~-9dBm (Max) Receiver sensitivity: -28dBm (Min) Link budget: 16dBm
		8/125um, 9/125um Maximum transmission distance: 120Km Transmission distance: 120KM@9/125um single mode fiber, attenuation (0.35dbm/km) Wave Length: 1310nm Transmitting power: -9dBm (Min) ~-8dBm (Max) Receiver sensitivity: -27dBm (Min) Link budget: 18dBm
	Single-mode Fiber
E1 Interface	Interface Standard: comply with protocol G.703; Interface Rate: n*64Kbps±50ppm; Interface Code: HDB3; E1 Impedance: 75Ω (unbalance), 120Ω (balance); Jitter tolerance: In accord with protocol G.742 and G.823 Allowed Attenuation: 0~6dBm
Ethernet interface (10/100M)	Interface rate: 10/100 Mbps, half/full duplex auto-negotiation Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN) MAC Address Capability: 4096 Connector: RJ45, support Auto-MDIX
Power	Power supply: AC180V ~ 260V；DC –48V；DC +24V Power consumption: ≤5W
Dimension	Product size: 19 inch 1U 483X138X44mm(WXDXH) Simple packaging: 522X198X82 mm (WXDXH) Piece weight: 2.5KG
Working environment	Working temperature: -10°C ~ 50°C Working Humidity: 5%~95 % (no condensation) Storage temperature: -40°C ~ 80°C Storage Humidity: 5%~95 % (no condensation)

Networking Application

BNC E1 pmux of 16e1 and 2RS232/422/485 single mode Dual Fiber 20km Pdh Multiplexer
